A large roof for your outdoor event? That's precisely what the MILOS MR6 large-scale pitched roof is.
An aluminium roof that offers the highest quality and safety. It is designed to meet all the requirements that large-scale events require.
Roof stands on six robust M520 QTPT Truss towers. The Grid of the roof is formed from Truss M1200 RTR, which, with its unique features and large SPAN up to 50m, can support even the largest outdoor events.
The height under the roof is almost 14m and provides plenty of room for lighting, effects and other required elements.
The roof boasts a load capacity of up to 32t so that it is possible to fit the desired equipment and effects without any limits.

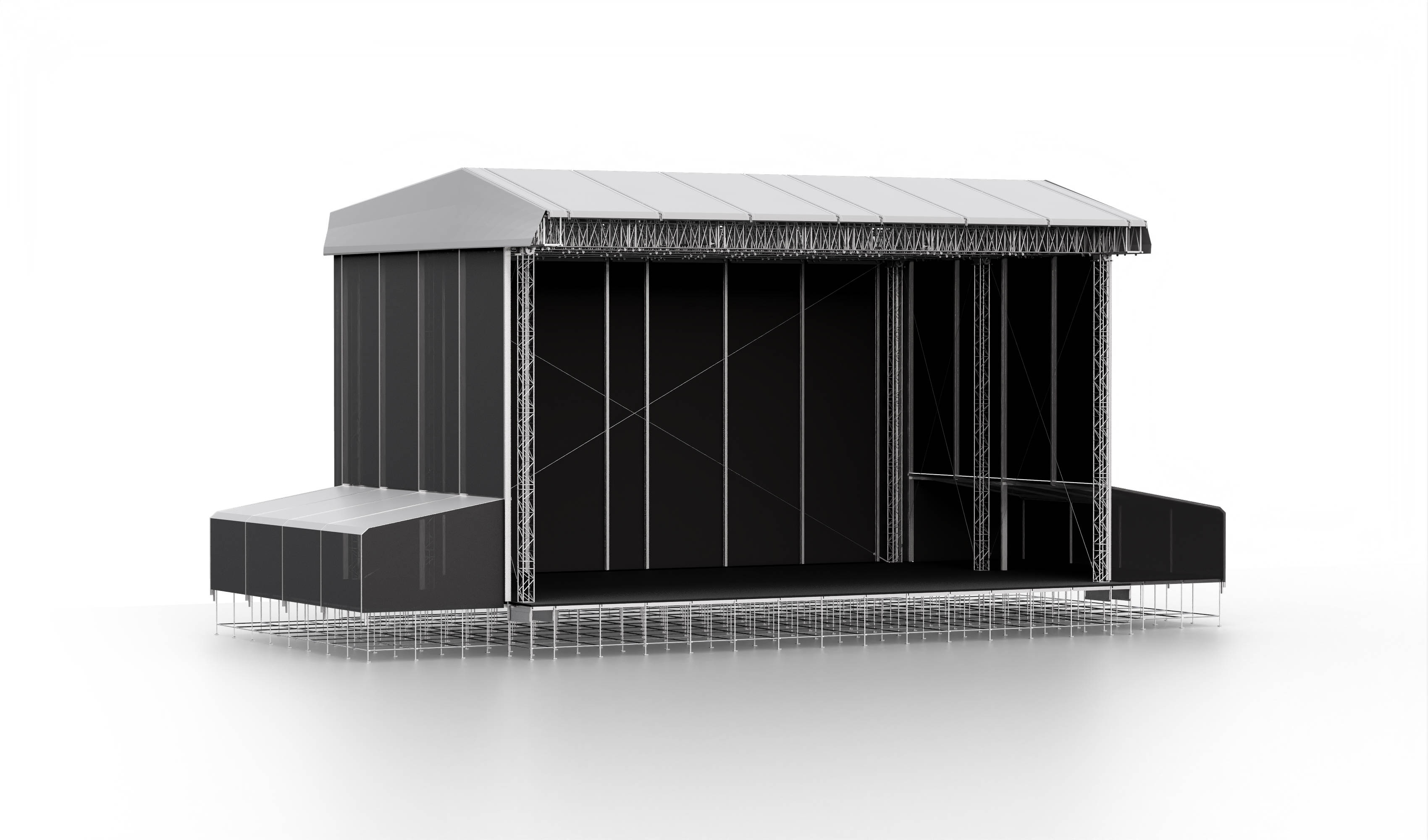

MR6 large scale pitched roof structure
Stage size 520m²

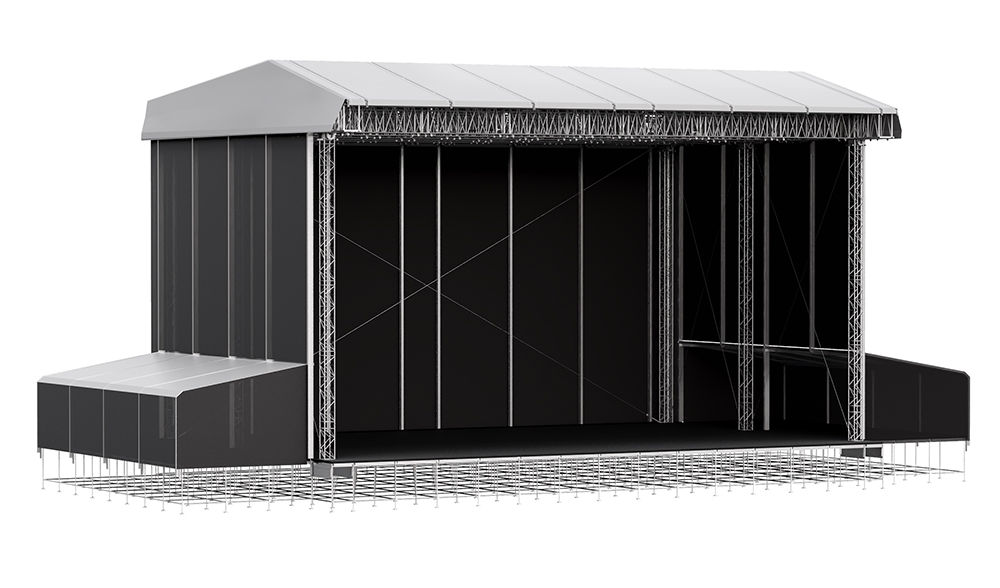

MR6 large scale pitched roof structure
Stage size 520m²
Main grid made of 5 spans of M1200 RTR truss
Clearance height nearly 14 m
Side stage structures on request

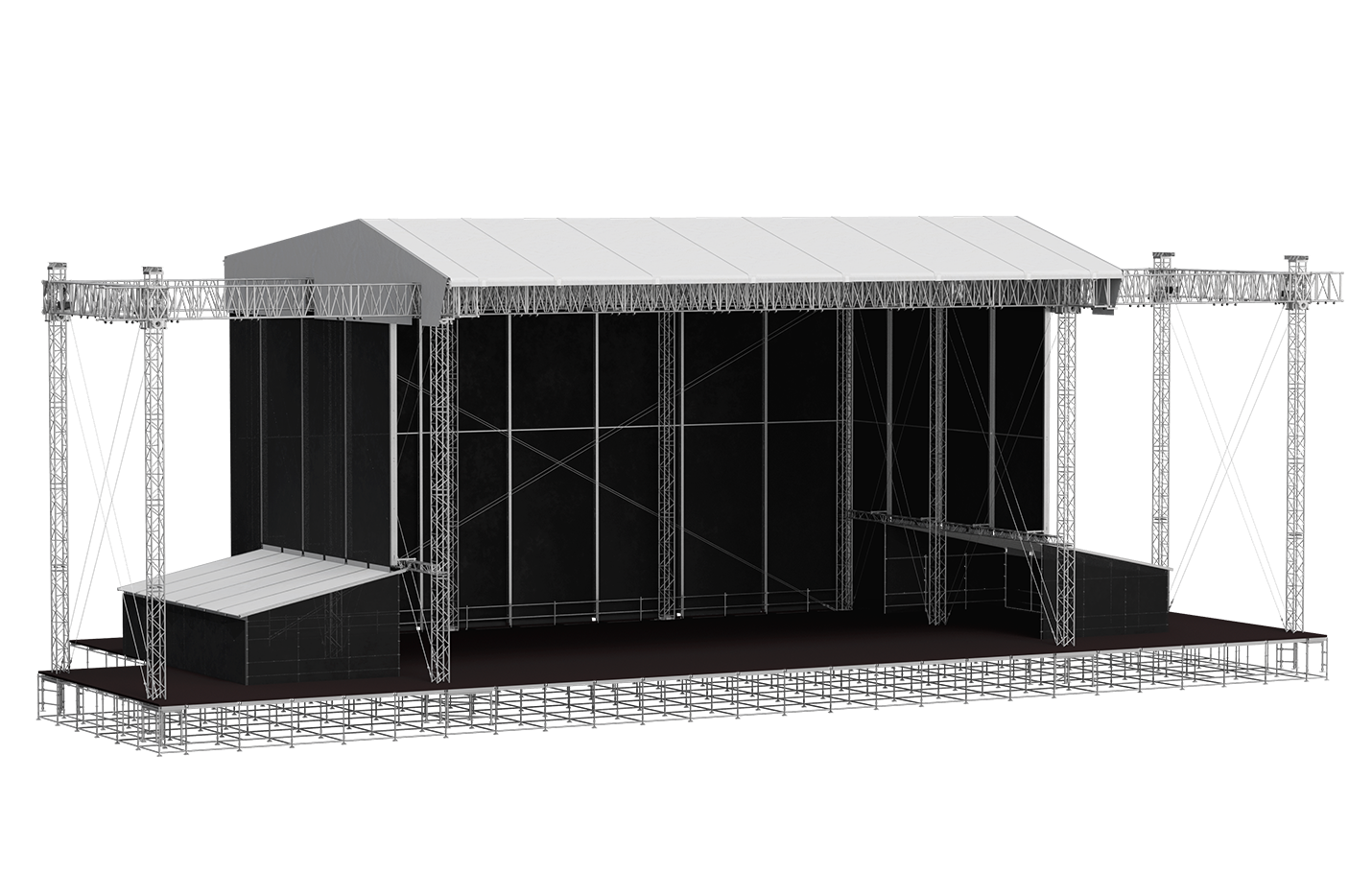

PA / video wing options available on request
Rear wall made of keder profile 300x122 mm
Side wall made of keder profile 250x122 mm
Range of coloured PVC covers available

Technical specification
Dimensions		Stage size	26x16 m	85,3x52.49 ft
	A	Internal width	26.47 m	89.84 ft
	B	Overall external width	40.56 m	133.07 ft
	C	Depth	17.70 m	58.07 ft
	D	Overall external depth	20.70 m	67.91 ft
	E	Clearance	13.30 m	43.63 ft
	F	Overall height	16.70 m	54.79 ft

MR6

MR6 26x16 Pitched Roof
