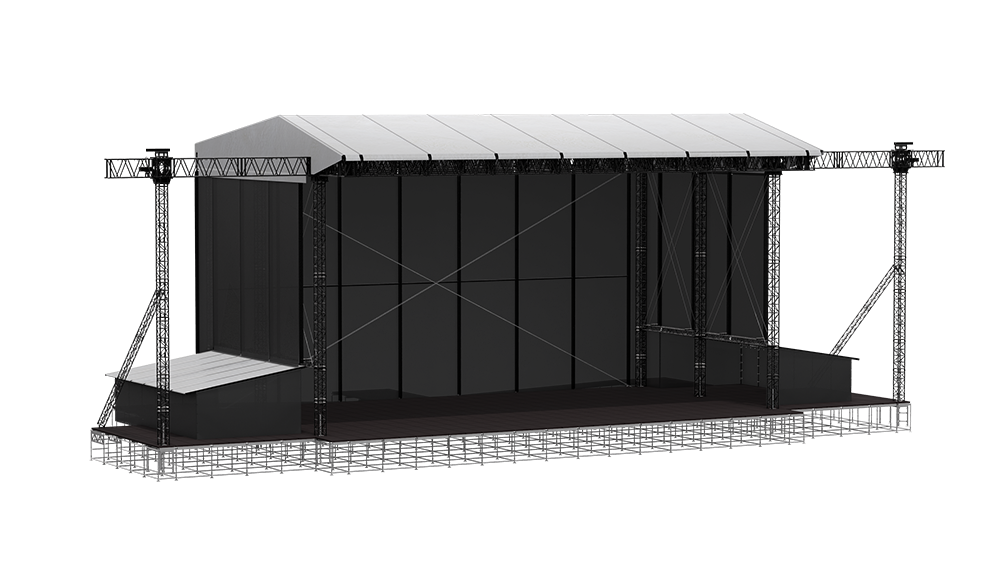

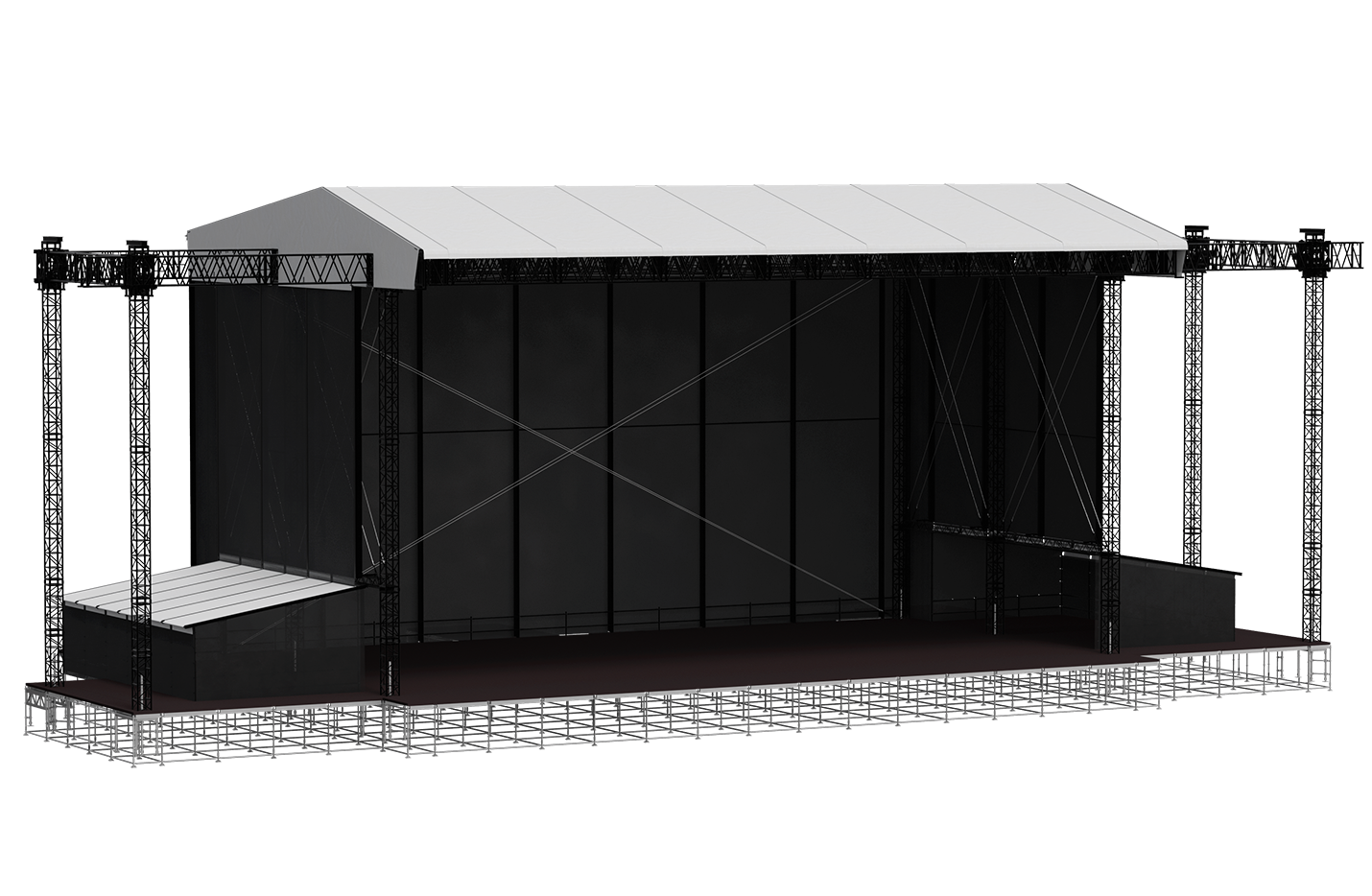

Produkte Bühnendächer S-MR10 Steel roof (28x19)

Produkte

Go back to Bühnendächer

Detailed information

Basic info Lengths & Weights Download section

Constructed from Ultra High Strength Steel
Unique locking system with 45t capacity per tower
Steel Head-section with aluminium wheels and heavy duty bearings
Dimensions 28x19 m (92x62 ft)
Durable industrial black paint finish as standard on all truss
Towers with integrated ladder for easy climbing
Canopy tensioning system for roof top canopies
Keder profiles for secure attachment of canopies

Technical specification
Dimensions		Stage size	28x19 m	91.86x62.33 ft
	A	Internal width	28.50 m	93.50 ft
	B	Overall external width	53.10 m	174.21 ft
	C	Depth	15.80 m	51.83 ft
	D	Overall external depth	20.30 m	66.60 ft
	E	Clearance	13.70 m	44.94 ft
	F	Overall height	17.20 m	56.43 ft

S-MR10

S-MR10 Steel roof (28x19)

Code: S-MR10
